PROGRAMMABLE GAS FLOW REGULATORS

Precise Gas Flow Control with an Intuitive Touchscreen Interface
Easily view, modify, and visualize gas flow profiles directly on the device — no external software required.

Smart Gas Flow Control

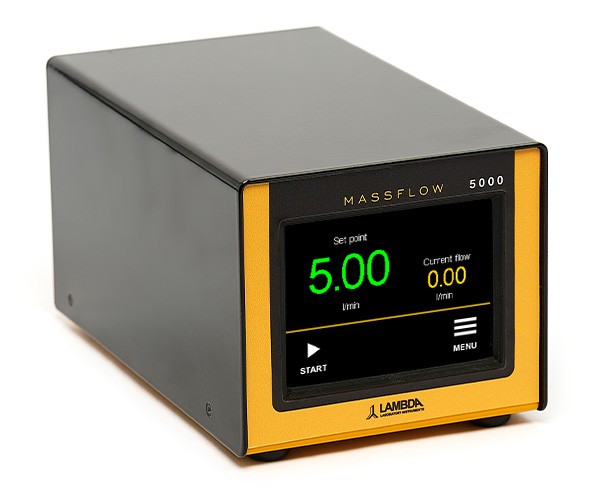

The LAMBDA MASSFLOW touch is a programmable digital gas flow controller designed for stand-alone use or seamless integration with the LAMBDA Minifor2Bio touch laboratory bioreactor. A laminar mass flow sensor ensures precise measurement with minimal pressure drop. The gas flow is regulated by LAMBDA's proprietary, microprocessor-controlled proportional needle valve.

Precise Gas Flow Regulation

The MASSFLOW touch ensures accurate gas flow measurement that remains largely independent of pressure and temperature variations.

O₂-Enrichment

Boost oxygen supply for high-density bacterial and yeast cultures. The MASSFLOW touch provides controlled O₂ addition exactly when and where it's needed.

Automatic Gas Mixing

Combine several MASSFLOW touch units to mix gases such as N₂, Air, O₂, and CO₂ with precision – ideal for creating defined gas compositions or adjusting specific concentrations.

Automatic pH Regulation

Keep culture pH within the optimal range effortlessly. The MASSFLOW touch precisely doses CO₂ in real time to control acidity.

MASSFLOW touch – Smart, precise gas regulation for every lab!

Compact & User-Friendly

• Compact design: 10 x 10 x 21 cm, stackable
• Touchscreen interface: 3.5" TFT IPS display for intuitive operation and real-time monitoring
• Advanced connectivity: USB for remote control, dosing program management, and software updates

Flow Rate Ranges

MASSFLOW 500: 0 – 500 ml/min
MASSFLOW 5000: 0 – 5 l/min
Gases: Air, N₂, O₂, CO₂, Argon

Gas Mixing Configuration

• 4-Gas Mix: mammalian or stem cell cultures with constant gas flow
• 3-Gas Mix: anaerobic fermentation and pH control with CO₂
• 2-Gas Mix: O₂-enrichment and pO₂ regulation

Advanced Features for Precision and Efficiency

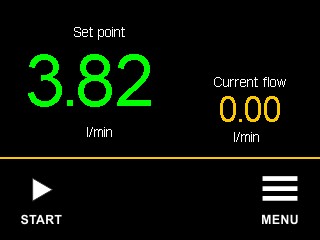

Flow Rate Setting

Select desired gas flow rate directly on the touchscreen. Monitor preset and actual gas flow values in real time.

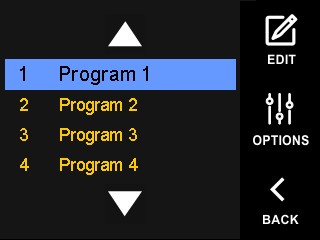

Gas Dosing Programs

Create and manage programs on the device or via software.

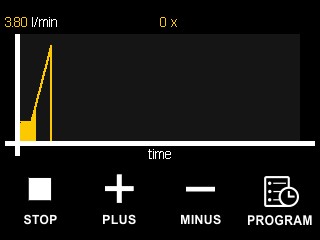

Real-Time Visualisation

Overview screen shows gas flow rate, status, and more.
