LAMBDA MINIFOR Fermenter-Bioreactor used for the Lactic Acid Production from Cocoa Pod Husks with Lactobacillus fermentum

A lab scale production of Lactic Acid with Lactobacillus fermentum using cocoa pod husks as substrate

Submerged Fermentation Using the LAMBDA MINIFOR Benchtop Fermenter-Bioreactor for the production of Lactic Acid.

In recent years, there's been growing interest in using agricultural waste as a raw material for producing valuable biochemicals. Among these, lactic acid stands out—not just for its wide range of applications in food, cosmetics, and biodegradable plastics—but also for how efficiently it can be produced through microbial fermentation.

A team from Côte d’Ivoire, Niger, Canada, and China, working with detoxified cocoa pod husk hydrolysate, demonstrates the valorize cocoa pods husks into lactic acid. The team used LAMBDA MINIFOR benchtop fermenter in the research setting to produce lactic acid from cocoa pod husks (CPH), an underutilized byproduct of the chocolate industry. The process relied on Lactobacillus fermentum ATCC 9338 and submerged fermentation techniques under precisely controlled conditions.

Reference and credit: Ouattara, L. Y., Konan, A. T. S., Mahamane Nassirou, A. K., Ali, S., Mabia, A. G., Kouassi, E. K. A., Soro, D., Yao, K. B., Drogui, A. P., & Tyagi, D. R. (2025). Use of Cocoa Pods Husks (Theobroma cacao L.) as a Potential Substrate for the Production of Lactic Acid by Submerged Fermentation Using Lactobacillus fermentum ATCC 9338. Waste and Biomass Valorization. doi.org/10.1007/s12649-025-03010-y

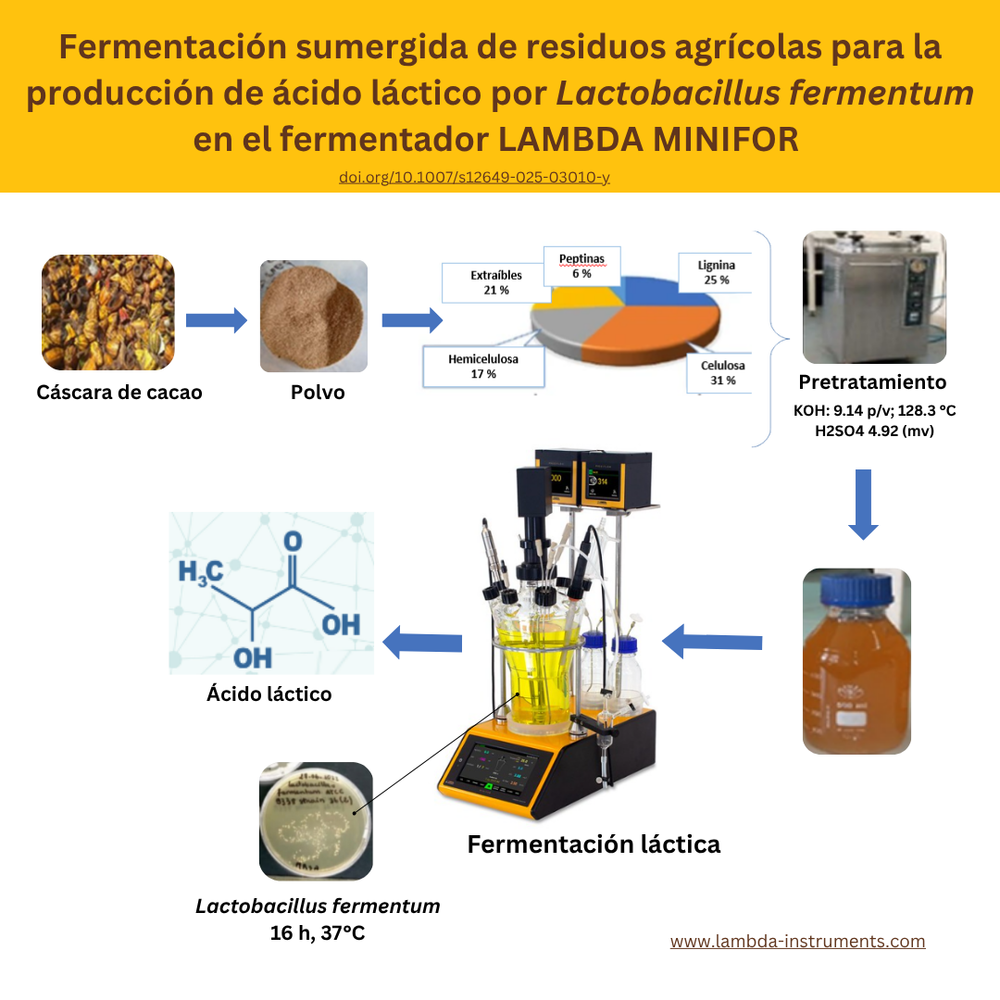

Lactic Acid Production from Cocoa Pod Husks

In a research setup using Lactobacillus fermentum ATCC 9338, the MINIFOR was used to ferment a hydrolysate derived from cocoa pod husks—a sugar-rich, pretreated lignocellulosic feedstock. With no additional nutrients added—thanks to the nutritional richness of the cocoa pod husk hydrolysate, the MINIFOR Fermenter maintained stable conditions over 72 hours:

  • Temperature: Maintained at 37°C
  • pH: Maintained between 5.5–6.0 automatically adjusted
  • Agitation: 240 rpm (4 Hz)
  • Aeration: Limited to create microaerophilic conditions suited to the bacterial strain

This setup resulted in:

  • 26.6 g/L of lactic acid, with a productivity of 1.25 g/(L·h)
  • Efficient consumption of glucose and xylose
  • Minimal by-product formation (only 3.1 g/L of acetic acid)
  • Significant reduction of fermentation inhibitors (e.g., furfural by 75%)

Benchtop Fermenter-Bioreactor for the Bioprocess Challenges

The Minifor Fermenter is a full-featured laboratory bioreactor with capabilities typically found only in large, expensive systems. Designed for ease of use without compromising on control, the MINIFOR offers:

  • Integrated innovative temperature control with fast response and uniform heat distribution
  • Precise pH regulation using the LAMBDA peristaltic pumps - Automatic pH regulation
  • Up-down biomimetic agitation system that ensures excellent mixing without cell damage
  • Modular setup for aerobic or anaerobic conditions, suitable for a wide range of microorganisms
  • Digital control interface with data logging and remote monitoring options

In lactic acid fermentation, especially from lignocellulosic sources like cocoa pod husks, controlling pH, temperature, and oxygen exposure is essential. The MINIFOR makes it easy to maintain those parameters with precision over multi-day fermentation runs.

What Sets the LAMBDA Minifor Fermenter Apart?

Unlike traditional stirred-tank fermenters, the MINIFOR was developed with real laboratory workflows in mind. It combines engineering precision with user accessibility:

  • Compact footprint (Just like an A4 sheet): Fits easily into small lab spaces
  • No complex setup (Elimination of heavy head plates, baffles etc): Ready to use with minimal practical experience.
  • Expandable: Can be configured with sensors, gas mixers, or additional vessels from 35ml to 6l working volume
  • Economical: Offers high-end features without the high-end price tag

Researchers working with sensitive cultures, variable substrates, or complex processes appreciate how reliably the MINIFOR maintains setpoints—even during long fermentations. For instance, a biotechnology research team using the MINIFOR for probiotic fermentation reported consistent pH and temperature control across multiple batches, significantly reducing variability and saving time on recalibrations. during long fermentations.

Ideal for Researchers, Educators, and Startups

Whether you're optimizing a microbial strain, screening feedstocks, or developing waste valorization pathways, the LAMBDA MINIFOR provides the tools needed for meaningful, reproducible results. It’s used not only in academic and industrial R&D but also in teaching labs where students need hands-on experience with real-world bioprocess equipment.



Conclusion

The LAMBDA MINIFOR isn’t just another lab fermenter—it’s a versatile, reliable, and intelligent platform built for real fermentation challenges. Its performance in submerged fermentation—such as lactic acid production from agro-waste—is a testament to its design and engineering.

If your work involves microbial fermentation, media optimization, or the valorization of renewable substrates, the MINIFOR gives you the control and insight needed to advance with confidence.
