New digital safety powder pump LAMBDA DOSER

LAMBDA Laboratory Instruments press release (12 September 2006): introducing a new digital powder dosing instrument, LAMBDA DOSER

Digital powder LAMBDA DOSER for precise and reproducible addition of powdery substances

LAMBDA Laboratory Instruments press release (12 September 2006):

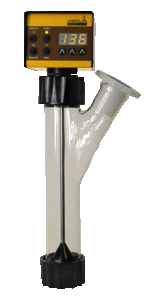

Powder dosing LAMBDA SAFETY DOSERLAMBDA Laboratory Instruments has introduced a new digital powder dosing instrument: LAMBDA DOSER.

The LAMBDA DOSER powder doser is a unique laboratory scale „pump” for the controlled addition of powders and powdery or crystalline substances. It has been developed to make the usual spoon-like additions of substances into reaction vessels obsolete. With the LAMBDA DOSER the addition of chemicals becomes not only reproducible and safe, but also conforms to modern safety and quality regulations required in the laboratory manipulation of chemicals.

The LAMBDA DOSER opens new possibilities in biochemistry for the separation of protein fractions by salting out or for the addition of sparely soluble substances into bioreactors in biotechnology, e.g. for biotransformations. This prevents volume increases and makes product isolation easier.

The LAMBDA DOSER is made according to a patented design and consists of a motor unit, a distributor and a glass body with glass threads on both sides and one side neck for filling. The powder dosing instrument is extremely easy to set up and to clean. It is so compact that it can be placed without problem onto any reactor construction. The special shape of the distributor makes it easy to work with a great variety of powders, even “difficult” powders.

The digital control of the LAMBDA DOSER by a microprocessor allows a precise dosing speed over a large range (from 0 to 999). This results in a large, reproducible flow rate range, e.g. 50 mg/min to 50 g/min for NaCl, which covers the vast majority of needs on the laboratory scale. Several vessels cover a capacity from a few grams to over one kg of powdery substance.

One side neck in the glass vessel allows filling during operation. The LAMBDA DOSER is air tight and allows powder dosing under controlled atmosphere, thereby protecting substances from oxygen and humidity. Furthermore, it allows safe handling and dosing of dangerous and toxic powdery substances.

The LAMBDA DOSER can be programmed (30 steps of dosing speed and time) and can be automatically switched on and off. There are several remote control options, e.g. by external signals 0-12 V or also by the optional RS-485 or RS-232 interface for enhanced PC control, which can be further complemented by the PC control software PNet. This allows the LAMBDA DOSER to be used for many different existing and new applications (e.g. variable flow rates, dosing gradients, etc.).

The LAMBDA DOSER makes the addition of chemicals reproducible, controlled and safe, thereby allowing laboratories to fulfill GLP and safety requirements.

For safety reasons, the LAMBDA DOSER is powered by a low voltage 12 V DC plug-in power supply (for mains: 100-240V, 50-60 Hz).

The use of the LAMBDA DOSER together with the LAMBDA INTEGRATOR allows the quantification of the amount of solid transferred as a function of time. The INTEGRATOR can also be used together with other LAMBDA instruments, e.g. the peristaltic pumps PRECIFLOW, MULTIFLOW, HIFLOW or MAXIFLOW or syringe pumps VIT~FIT for the quantification of the amount of liquid, and with the LAMBDA MASSFLOW gas flow controller for the amount of gas transferred over a period of time.


About the company: LAMBDA Laboratory Instruments has more than 30 years of experience in the development and construction of innovative laboratory instruments of high quality having an excellent price-to-performance ratio. Among these instruments are: laboratory fermenters, bench-top bioreactors for cell culture, peristaltic pumps, infusion pumps, syringe pumps, fraction collectors, powder dosing instruments and fermentation software for biotechnology, microbiology, food and agricultural, chemical and pharmaceutical research and development, educational purposes as well as for general laboratory and research applications.

LAMBDA Laboratory Instruments – where innovation keeps quality high and prices low
